Deep Dive: Advanced Packaging Pt. 3 - The Thermal Management Bottleneck

This deep dive is the third part of our exploration of advanced packaging. In the first edition, we covered the fundamentals: why packaging matters, what drives its adoption, and the most recent innovations in the field.

The second part examined how advanced packages are organized through 2D, 2.5D, and 3D integration, along with the role of interposers in enabling these dense chip-to-chip links.

With part of the architectural complexity now established, this part turns to thermal management: the physical constraint that increasingly defines what advanced packaging can realistically support. As chiplets stack and power densities rise, managing heat has become a primary limiter, not a secondary engineering task.

Thermal Challenges

Rising Chiplet Power Density: Increased transistor concentration within individual chiplets creates localized heat, shifting the challenge from overall package power to concentrated thermal hotspots.
Stacking and Reduced Heat Paths: Vertical die stacking limits surface area for heat extraction and increases thermal resistance to the cold plate, resulting in higher thermal density within the stack.
Heterogeneous Layout Tradeoffs: Integrated compute, memory, and power IP produce different thermal profiles, requiring tradeoffs, as improving thermals in one region can worsen conditions in another under variable workloads.
High-Speed IO in Base Dies: Higher power densities in IO blocks (input/output interfaces), when placed in base die layers, face increased dissipation difficulty due to interconnect and dielectric barriers.
Thinner Silicon and Interface Sensitivity: Silicon thinning (from roughly 700 µm to 50 µm) reduces lateral heat spreading and increases sensitivity to thermal defects.

Thermal Requirements

Thermal Interface Materials (“TIMs”): Current efforts focus on lowering thermal resistance at critical interfaces within the package. Looking ahead, requirements include up to a 50% reduction and a transition toward embedded cooling without traditional interface materials.
Heat Spreaders: Materials with higher thermal conductivity than copper are needed, while maintaining manufacturability. Over time, these spreaders must integrate directly into stacked architectures rather than sitting above them.
Cooling Solutions: System-level cooling is shifting from air-based CRAC (Computer Room Air Conditioning) units toward direct liquid cold plates at the package. Future approaches include above-ambient and sub-ambient cooling, ultimately requiring heat removal from within stacked dies.
Metrology: Future thermal solutions require non-destructive measurement with approximately 3 °C accuracy to characterize thermal behavior across bonded layers, including x-y-z conductivity (across horizontal and vertical heat paths).
Modeling: Multiphysics thermal modeling is needed to simulate conductivity and heat flow in stacked architectures, capturing material interactions and enabling design validation before fabrication.

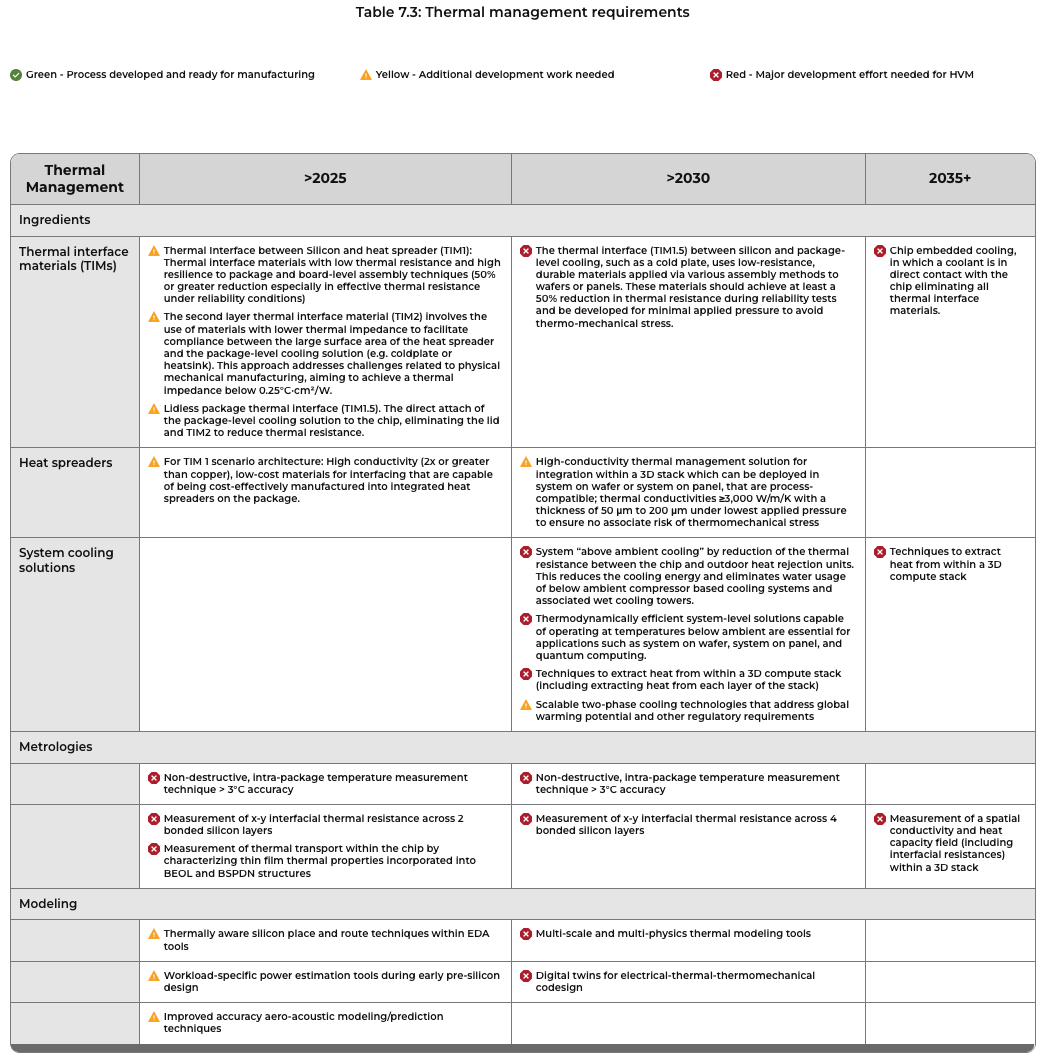

Thermal management requirements. Source: MAPT.

Thermal management has shifted from a packaging afterthought to a determining factor in system architecture. As transistor counts and stack depths increase, managing localized heat becomes as critical as delivering power or routing signals. Future compute systems will depend on co-design of cooling, materials, and workload profiles, making thermals a central pillar of advanced packaging.

Source: Chapter 7 – Advanced Packaging and Heterogeneous Integration (MAPT, 2025)
